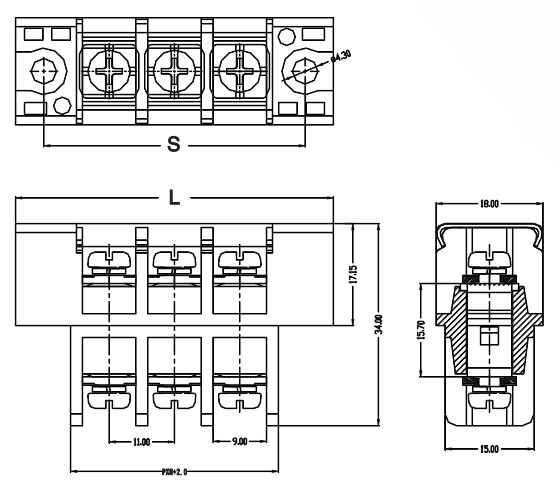

位數 N |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
15 |
16 |
|
總長L |
42.5 |
53.5 |
64.5 |
75.5 |
86.5 |
97,5 |
108.5 |
119.5 |
130.5 |
141.5 |
152.5 |
163.5 |
174,5 |
189.5 |
196,5 |
|
|
固定孔距s |
33 |
44 |
55 |
66 |
77 |
88 |
99 |
110 |
121 |
132 |
143 |
154 |
165 |
176 |
187 |
TECHNICAL DATA
|
端子間距(Center Spase) |
11. 0mm |
|
壓線範圍(Wire Range) |
4mm2 (Max) |
|
螺釘扭距(Screw Torque) |
10 Ibf. in |
|
額定電流(Rated Current) |
600V,30A |
|
衝擊耐壓(Surge Voltage) |
6000V |
|
絕緣材料(Insulation Body) |
PBT,UL94,V-0 |
|
螺釘材質(Screw Material) |
M3,5,STEEL |
|
端子材質(TerminaI Body) |
BRASS |
|
操作溫度(Temperature) |
-40°C~105°C |
