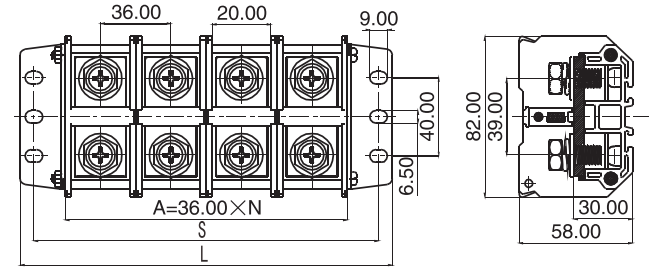

位數 N |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
15 |
16 |
|
總長L |
118 |
154 |
190 |
226 |
262 |
298 |
334 |
370 |
406 |
442 |
478 |
514 |
550 |
586 |
622 |
|
|
固定孔距s |
104 |
140 |
176 |
212 |
248 |
284 |
320 |
356 |
392 |
428 |
464 |
500 |
536 |
572 |
608 |
|
端子間距(Center Spase) |
36. 0mm |
|
壓線範圍(Wire Range) |
100mm2(Max) |
|
螺釘扭距(Screw Torque) |
60 Ibf. in |
|
額定電流(Rated Current) |
600V,200A |
|
衝擊耐壓(Surge Voltage) |
6000V |
|
絕緣材料(Insulation Body) |
PC,UL94,V-0 |
|
螺釘材質(Screw Material) |
M10,STEEL |
|
端子材質(TerminaI Body) |
BRASS |
|
操作溫度(Temperature) |
-40°C~105°C |
