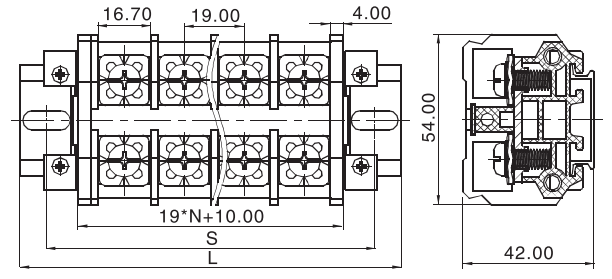

位數 N |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
15 |
16 |
|
鋁軌長L |
57 |
77 |
97 |
117 |
137 |
157 |
177 |
197 |
217 |
237 |
275 |
277 |
297 |
317 |
337 |
357 |
|
固定孔距s |
40 |
60 |
80 |
100 |
120 |
140 |
160 |
180 |
200 |
220 |
240 |
260 |
280 |
300 |
320 |
340 |
TECHNICAL DATA
|
端子間距(Center Spase) |
19. 0mm |
|
壓線範圍(Wire Range) |
14mm2(Max) |
|
螺釘扭距(Screw Torque) |
18 Ibf. in |
|
額定電流(Rated Current) |
600V,60A |
|
衝擊耐壓(Surge Voltage) |
6000V |
|
絕緣材料(Insulation Body) |
PC,UL94,V-0 |
|
螺釘材質(Screw Material) |
M6,STEEL |
|
端子材質(TerminaI Body) |
BRASS |
|
操作溫度(Temperature) |
-40°C~105°C |
